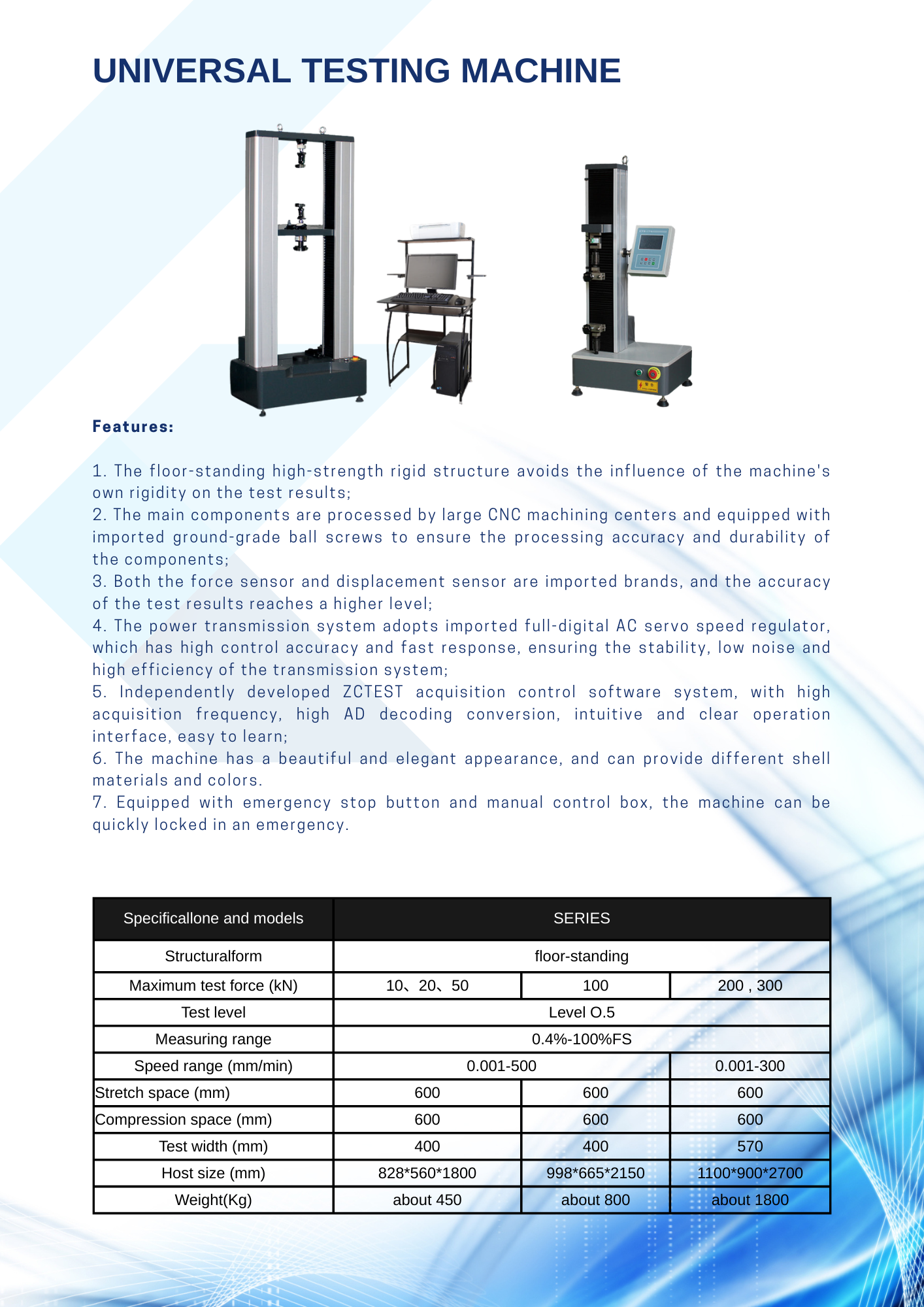

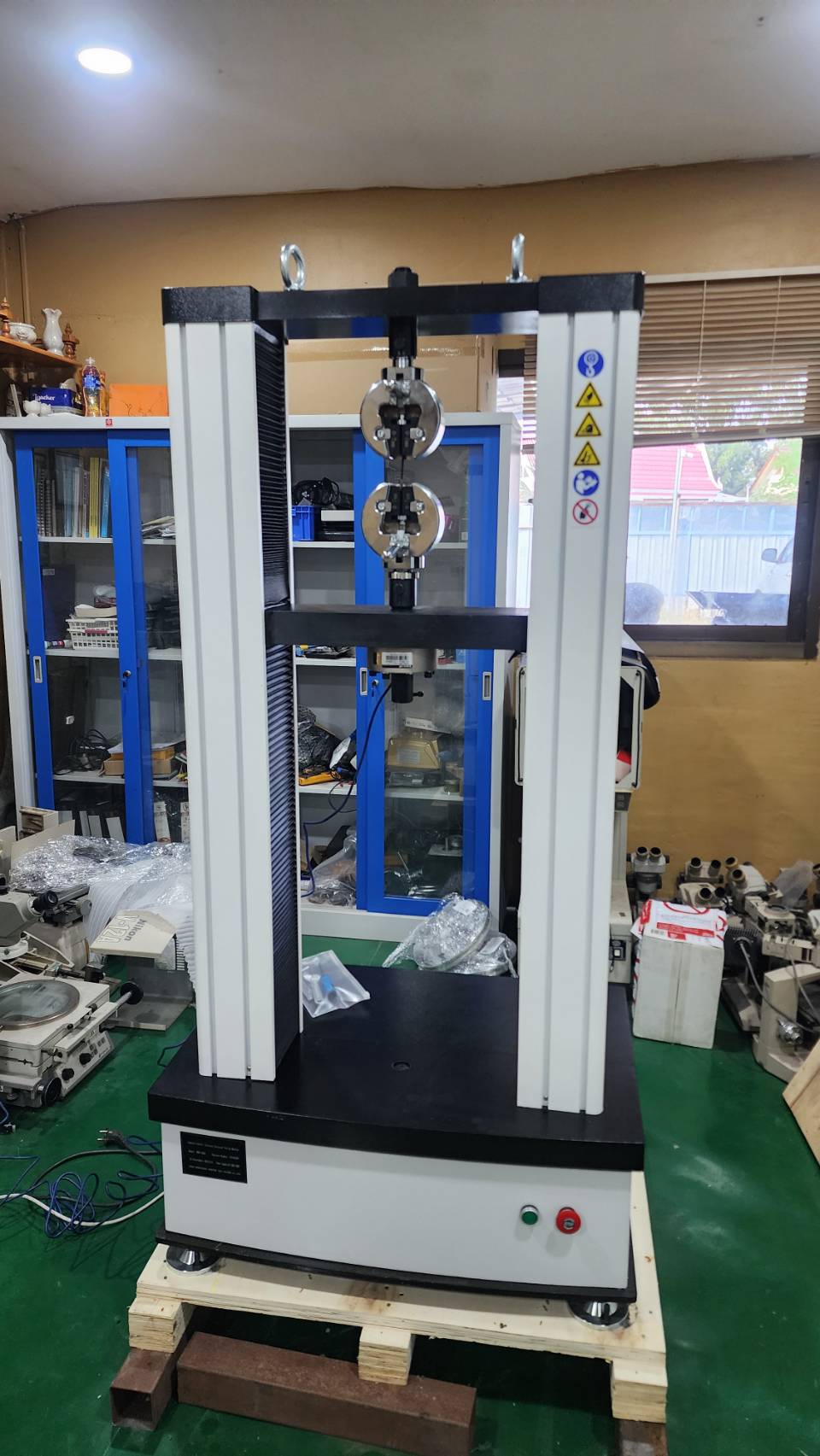

Universal Testing Machine (UTM) 50kN

Product:Computer Control Electronic Universal Testing
Machine

1. Structure type：Double-column structure
2. Display type：Computer control
3. Max test force：50kN
4. Measuring range：2% ~ 100% FS
5. Accuracy：±0.5%
6. Displacement resolution：0.01mm
7. Speed range：0.01-500mm / min
8. Test space：600mm (Can be customized)
9. Dimensions：About 820*550*1650 mm
10. Weight：about 360kg
11. Power supply：AC 220V±10% 50Hz
12. Stretching fixture:1 set
13. Compression plate:1 set
14. Computer : 1 set
15. Printer : 1 set
16. Calibration ISO/IEC17025 : 1 time
17. Delivery & Installation : thailand only

Electronic universal testing machine is mainly used for mechanical property testing and analysis of metals, non-metals, composite materials and products. It can perform tensile, compression, bending, peeling, shearing, tearing, puncture, bursting and various high and low temperature tests according to GB, ISO, JIS, ASTM, DIN and various standards provided by users. It can detect the yield strength, tensile (bending, compressive) strength, elongation, elongation after fracture, cross-sectional shrinkage, elastic modulus and other parameters of the sample. It has functions such as mechanical limit, sensor overload, overvoltage current, leakage protection, etc.

Widely used in aerospace, petrochemical, machinery manufacturing, medical industry, rubber and plastics, ceramic building materials, metal materials, vehicle parts, wires and cables, construction engineering and other industries.

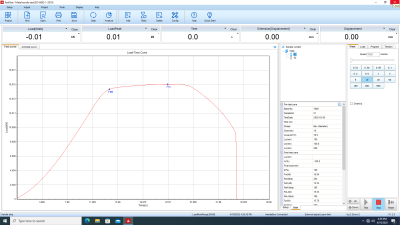

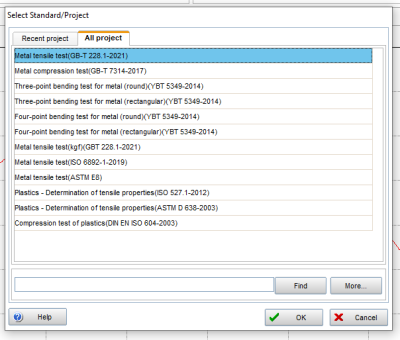

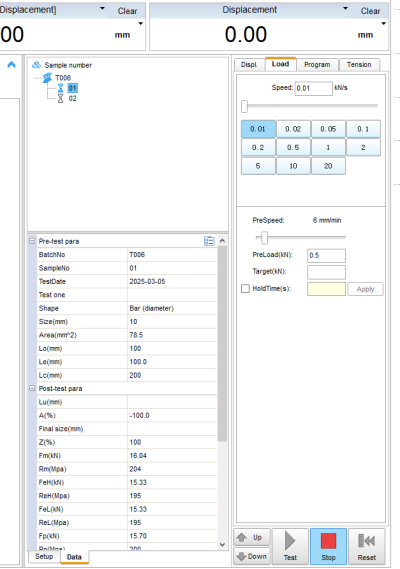

Software is independently developed by our company and has complete intellectual property rights. The software has the functional characteristics of integration, autonomy, and humanization. The software is mainly suitable for microcomputer-controlled electronic universal testing machines, microcomputer-controlled electronic tensile testing machines and other models.
