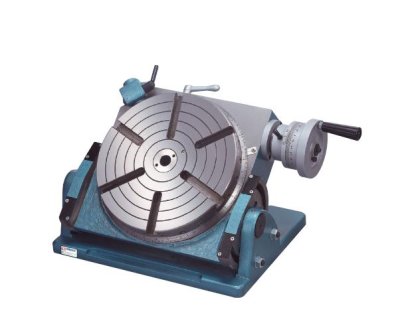

VERTEX -Universal Tilting Rotary Table VU-300

FEATURES

This is an accurate designed table for milling, boring and other machine tools. This table allows indexing, facing and other work to be carried out rapidly with extreme precision.

Tiliting range 0-90 degrees from horizontal to vertical position, 1 rotation of handle equals 3 degrees, 5 minutes tilting reading.

• 10 Second Vernier Scale.
• Table Dial 1 Minute Graduations.

• Fast Degrees: Dividing Notch Pin & 24 Holes in 15 Degrees
• Around The insures Rapid Accurate Spacing.

• Minimum Set-up time.

• Rugged Construction.
