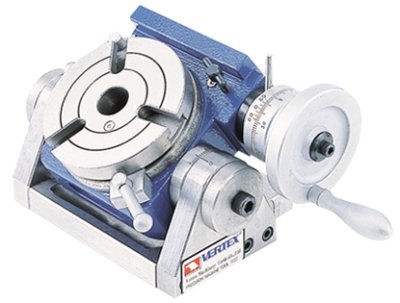

VERTEX -Universal Tilting Rotary Table,VU-100,150,200

FEATURE:

•  Tiliting range 0-90 degrees from horizontal to vertical postion, It is high rigidity.

•  Minimum Set-up time: It has two screws to lock setting. Low profile body for bigger capability.

•  Worm is hardened and ground. The ratio is 90:1. The work table is graduated a full 360˚ so that of the handle moves the table through 4˚. Micro collar is graduated in steps of 2 min.

• The tailstock & Dividing plates are optional. The sizes is same as the rotary table, please see VERTEX CATALOG page A2.

• For arc or index cutting at milling machine, Gringing machine or drill Machine.
