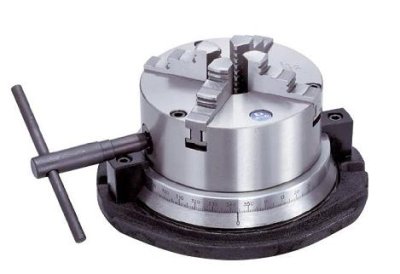

VERTEX SIMPLE ROTARY CHUCK VSR-6,8,34
SKU : VSR Series
āļāļēāļĒāđāļĨāđāļ§ 0 āļāļīāđāļ
0 THB
āđāļāļĢāļāļāđ: VERTEX
āļĢāļēāļĒāļāļēāļĢāđāļāļĢāļ
āđāļāļĢāļĩāļĒāļāđāļāļĩāļĒāļ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
| ORDER NO. | A | B | D | E | M | REMARKS |

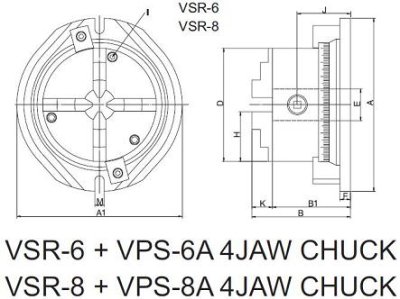

| VSR-6 | 245 | 139 | 160 | 45 | 14 | 4 JAWS CHUCK |
| VSR-8 | 305 | 159 | 200 | 65 | 18 | 4 JAWS CHUCK |

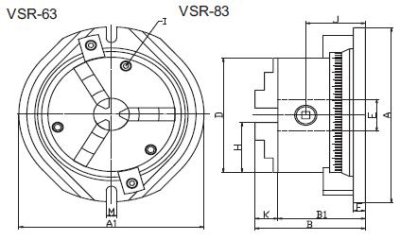

| VSR-63 | 245 | 139 | 160 | 45 | 18 | 3 JAWS CHUCK |
| VSR-83 | 305 | 159 | 200 | 65 | 18 | 3 JAWS CHUCK |
FEATURES
1. 3/4 JAWS CHUCK is designed with swivel bae for multi-functional purpose.
2. IT'S SIMPLE & RAPID OPERATION CAN BE SET UP ON THE MILLING MACHINE'S TABLE.
3. 360 DEGREE VERNIER SCALE: SMOOTH SWIVEL MOTION & EASY CLAMPING.
4. SUIT FOR MILLING & DRILLING MACHINE USING &
MACHIINING CENTER.
