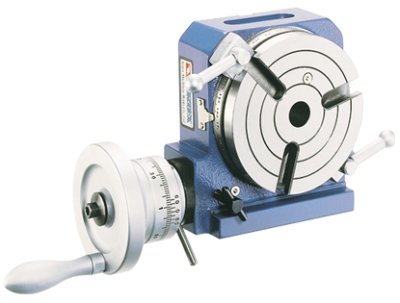

VERTEX Mini Rotary Table, HV-4

VERTEX Mini  Rotary Table, HV-4

1.    HORIZONTAL / VERTICAL TYPE

                2.    TABLE DIA.Ø110mm. TABLE HEIGHT 26mm.

                3.    CENTER BORE MT-2. SLOT ON TABLE 3 NOS.

                4.    CENTER HEIGHT 80mm

                5.    BASE SIZE 145 x 130 x 80mm

                6.    WORM IS HARDENED AND GROUND. THE GEAR RATIO IS 90:1. THE WORK TABLE IS GRADUATED A FULL 360˚ SO THAT OF THE HANDLE MOVES THE TABLE THROUGH 4˚. MICRO COLLARE IS GRADUATED IN STEPS OF 2 MIN.

                7.    G.W. 7.5KGS

                8.    GFT. 0.3CUFT



ACCESSORY:

         DIVIDING PLATE:DP-1 set include index plate. crank handle,3 pcs screw,sector,& u Washer.

                 1 carton with 1set.Gross weight:3.5kgs.

         Meas:0.13 CFT.

         Number of the holes of Dividing Plates

         TAILS STOCK:TS-1,3.59KGS
